Subtle anterior MI evolving over less than 3 minutes
LAD Occlusion

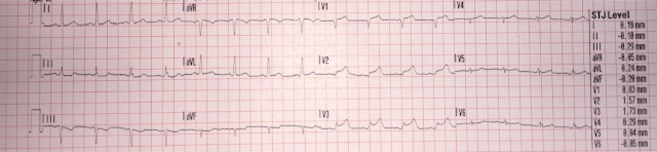

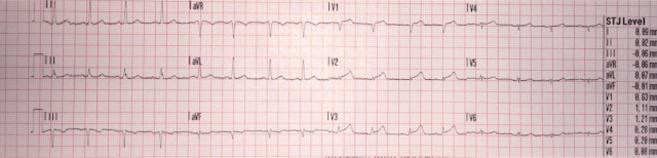

Initial EKG demonstrates subtle anterior MI but was called “normal” by the computer

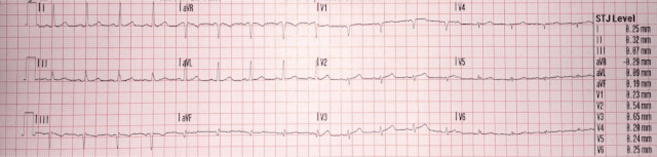

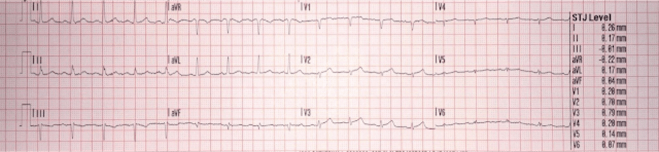

EKG 90 seconds later shows evolution of MI
LAD Occlusion

Subtle inferior MI with evolvement
Always look for ST depression and T-wave inversion in aVL, can present BEFORE changes in lead III
RCA Occlusion

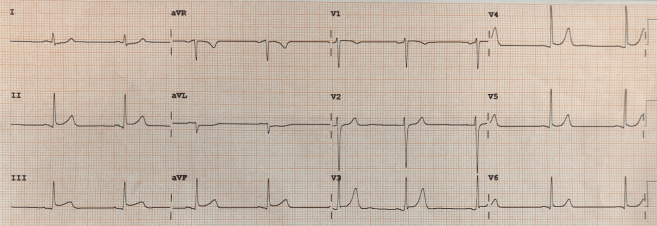

Initial EKG showing  de Winter T-waves in leads V2-V5 indicating unstable LAD lesion
Resolution in second EKG after nitroglycerin, still requires cath lab
Patient had severe LAD stenosis and other lesions requiring CABG

Additional example of DeWinter’s T-waves

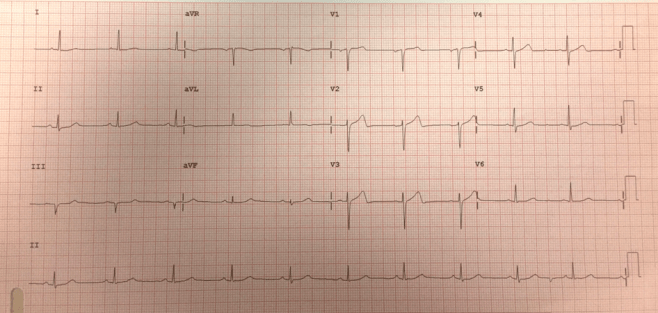

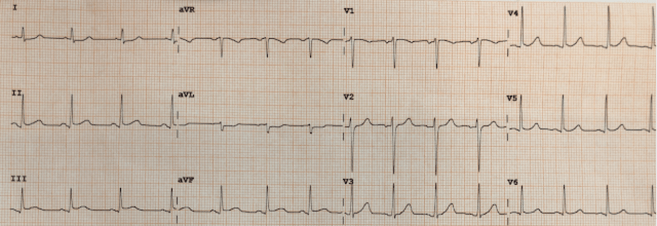

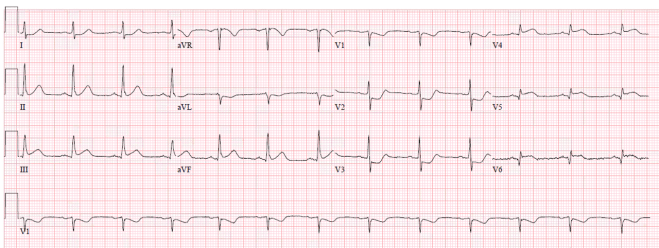

Initial EKG shows ST depression in V2-V5 indicating posterior MI
Second EKG shows evolving inferior and lateral MI
The posterior descending artery may arise off the RCA or LCx
This case was due to a LCx occlusion

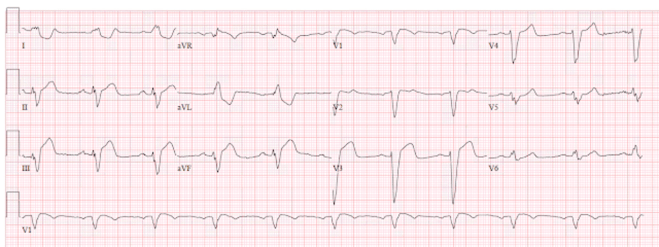

EKG demonstrating OMI in the setting of LBBB
Use the Modified Sgarbossa Criteria to detect MI in LBBB

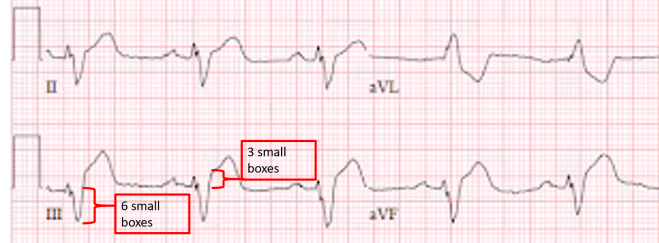

Sgarbossa Criteria

wellens 1(a)wellens 1(b)
wellens 1(c)

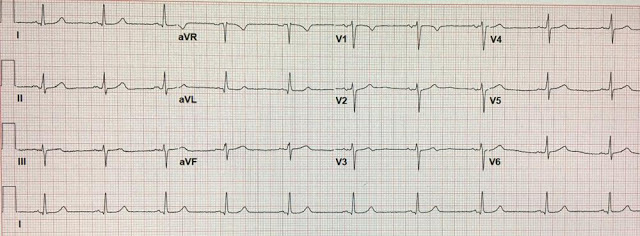

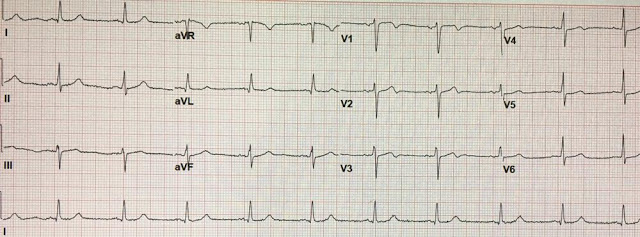

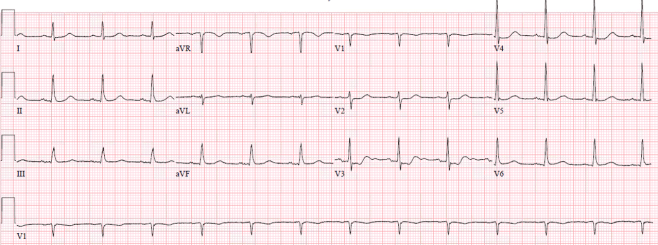

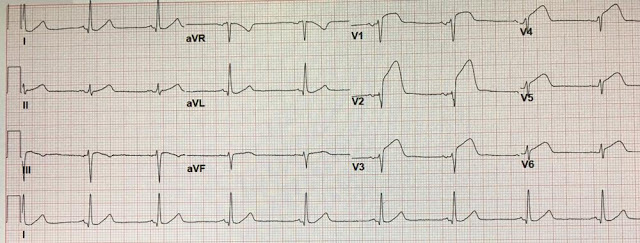

Wellen’s Syndrome is when a coronary artery artery occlusion resolves and reperfusion of the vessel occurs. Patients often have chest pain that has resolved at the time of the EKG. Here we see type A Wellen’s where there are biphasic T-waves. The third EKG demonstrates reocclusion of the EKG and was taken during recurrence of chest pain.

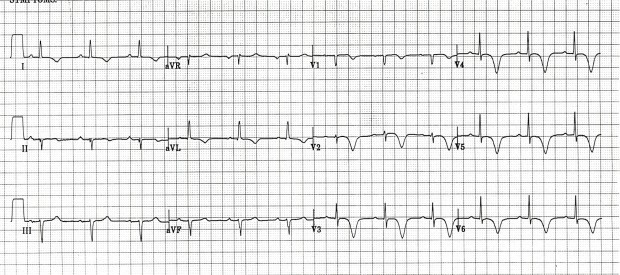

Here is an example of type B Wellen’s which would occur similarly to type A. Here we seen deep symmetric T-wave inversions which is typical in reperfusion.

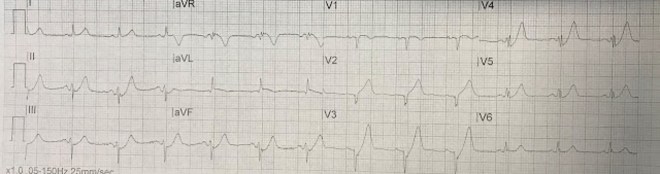

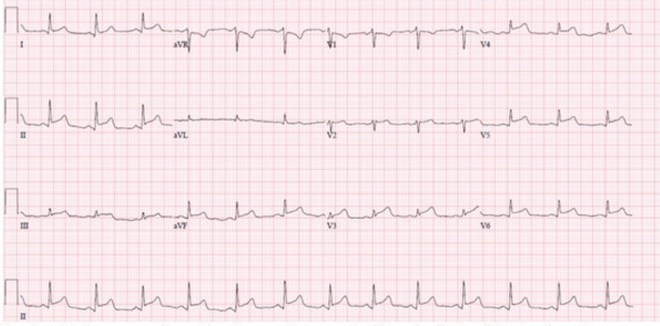

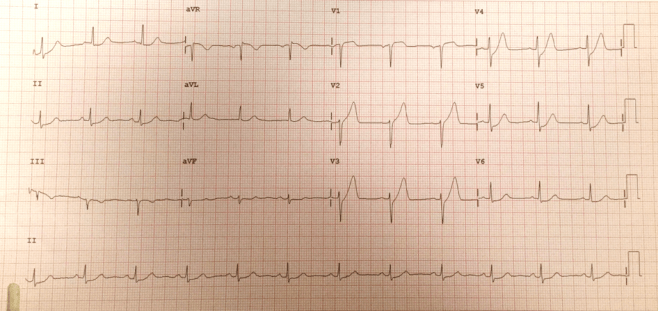

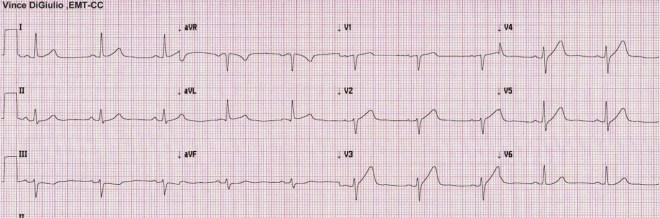

EKG with diffuse ST elevation

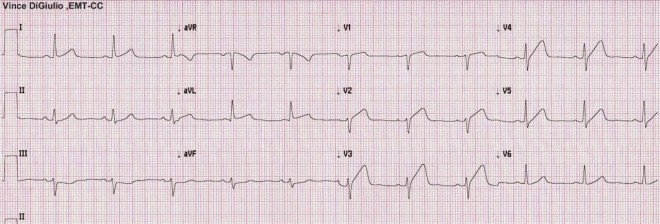

This can be mistaken for pericarditis but is actually due to occlusion of a wraparound LAD
Pericarditis is a diagnosis of exclusion, all other life-threatening causes must be ruled out


Most ECGs used (besides de Winter case) are from Dr. Smith’s ECG Blog with permission:
OMI lecture: https://emcrit.org/emcrit/emcrit-podcast-250-the-omi-manifesto-lecture-by-pendell-meyers/
OMI Manifesto: https://emcrit.org/emcrit/omi-manifesto/

Highly recommend these resources:
“EKG Club” and “12 lead ecg. I’ve got the rhythm” groups on Facebook
